Molded pulp protective inserts machine
The Molded pulp protective inserts machine, also referred to as the molded pulp tray Machine, is a specialized pulp molding system designed to convert discarded paper into multifunctional molded pulp tray, heavy duty molded fiber. This innovative technology provides an eco-friendly and efficient solution for shockproof paper tray.
Shockproof paper tray
- Cost-Effective – Affordable solution for small and medium-scale production.
- Easy Operation – Simple design for convenient operation and maintenance.
- Flexible Production – Easily switch molds to produce various tray types.
- Energy Efficient – Stable drying system with low energy consumption.
Scalable Capacity – Suitable for both growing businesses and large-scale production.
Technical Parameters
| Model | Reciprocating Production Line | ||
| Machine Structure | Forming Upper Platen x1; Forming Lower Platen x1; If Platen size is bigger, Upper platen move out automatically, Or to match with dryer by auto feeding. | ||
| Platen Size | Different sizes of plates would be customized on demand | ||
| Forming Method | Reciprocating | ||
| Matching Dryer | Natural Drying or Drying Tunnel Or single Layer Dryer as Optional | ||
| Heating Type | Thermal Oil, Natural Gas or Steam Heating | ||
| Control By | PLC + Touchscreen | ||
| Designed Capacity | Depends on Products | ||
| Product Height Range | ≤150mm | ||

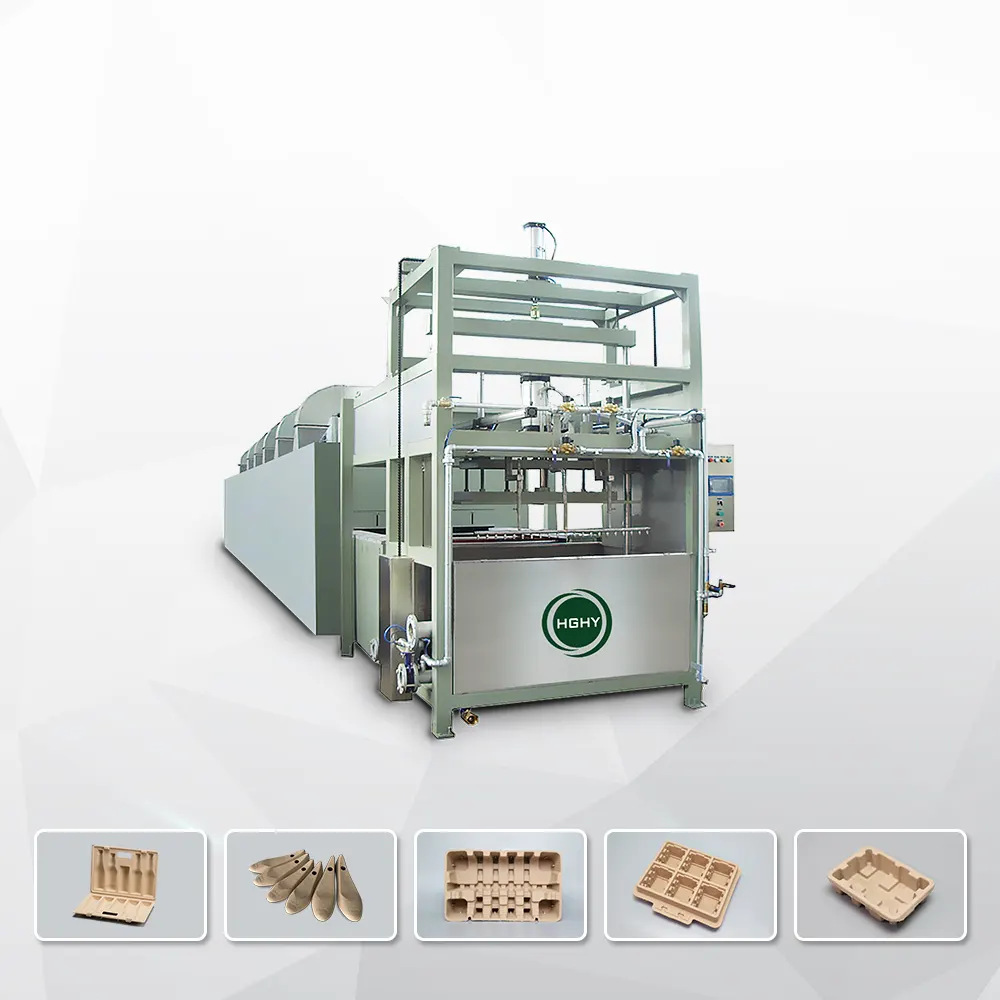

Shockproof paper tray manufacturer Machine
The Shockproof paper tray manufacturer Machine comes in a range of models to suit your specific needs. Additionally, you can customize your selection with a drying system of your choice. All machines are equipped with a specially designed advanced control system, which significantly boosts production efficiency while reducing labor costs.
Production Process
How does Molded pulp protective inserts machine work? Raw Material – Pulping-Screening – Cleaner & Deflaker-Proportioning – Providing – Drying Product Line- Forming – Auto Stacking

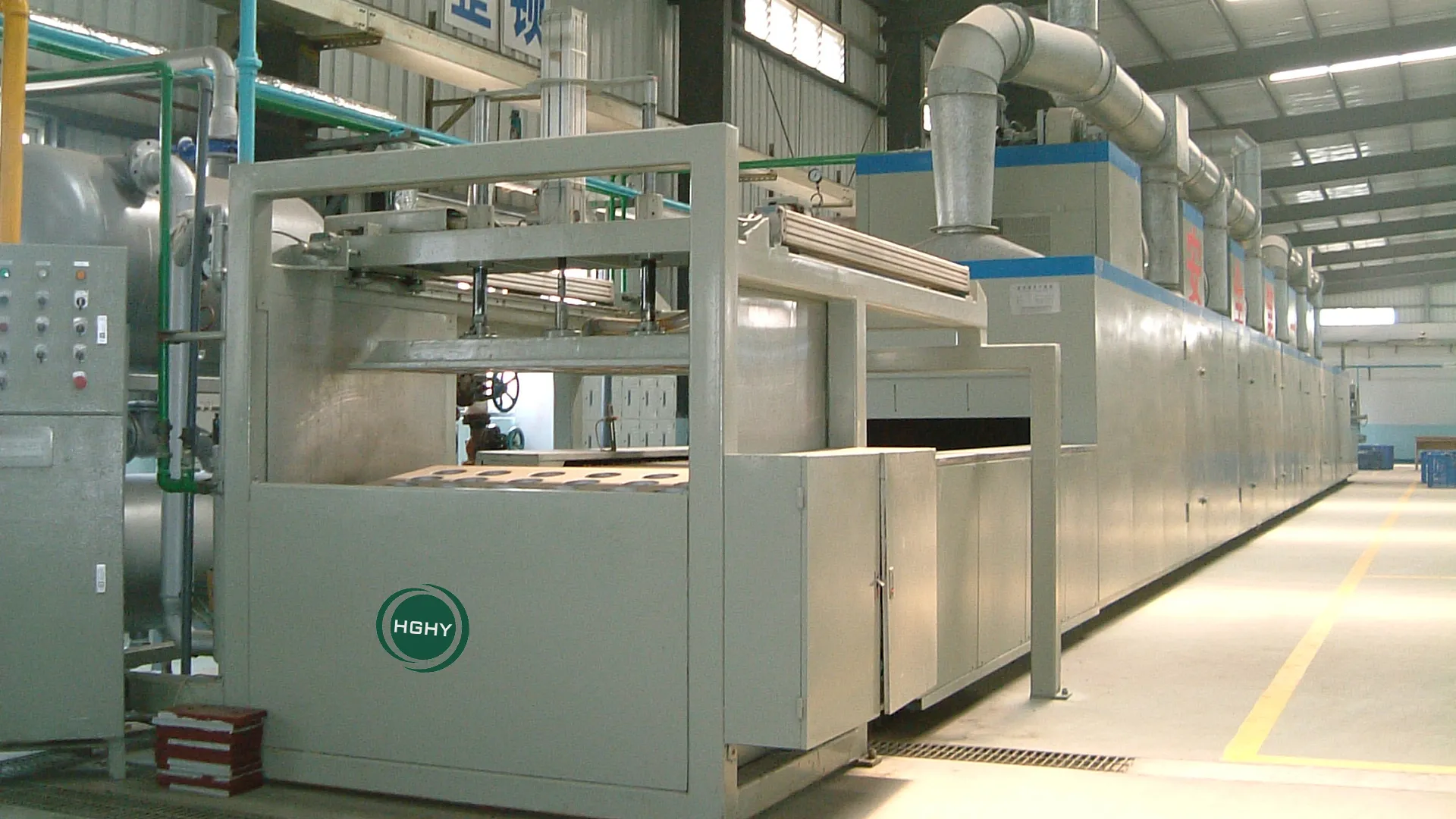

Drying system
Hot air is applied uniformly across the surface of the pulp molding items to effectively remove moisture from the damp products. Once the drying process is complete, the items are automatically transferred to the stacking system and subsequently shrink-wrapped for packaging.
Pulp Preparation System
The process involves mixing bagasse, bamboo, or wood pulp with water or chemical solutions to create a pulp-like substance. This mixture is then processed to form a versatile pulp, which can be molded into various eco-friendly products such as packaging, tableware, and other biodegradable items.

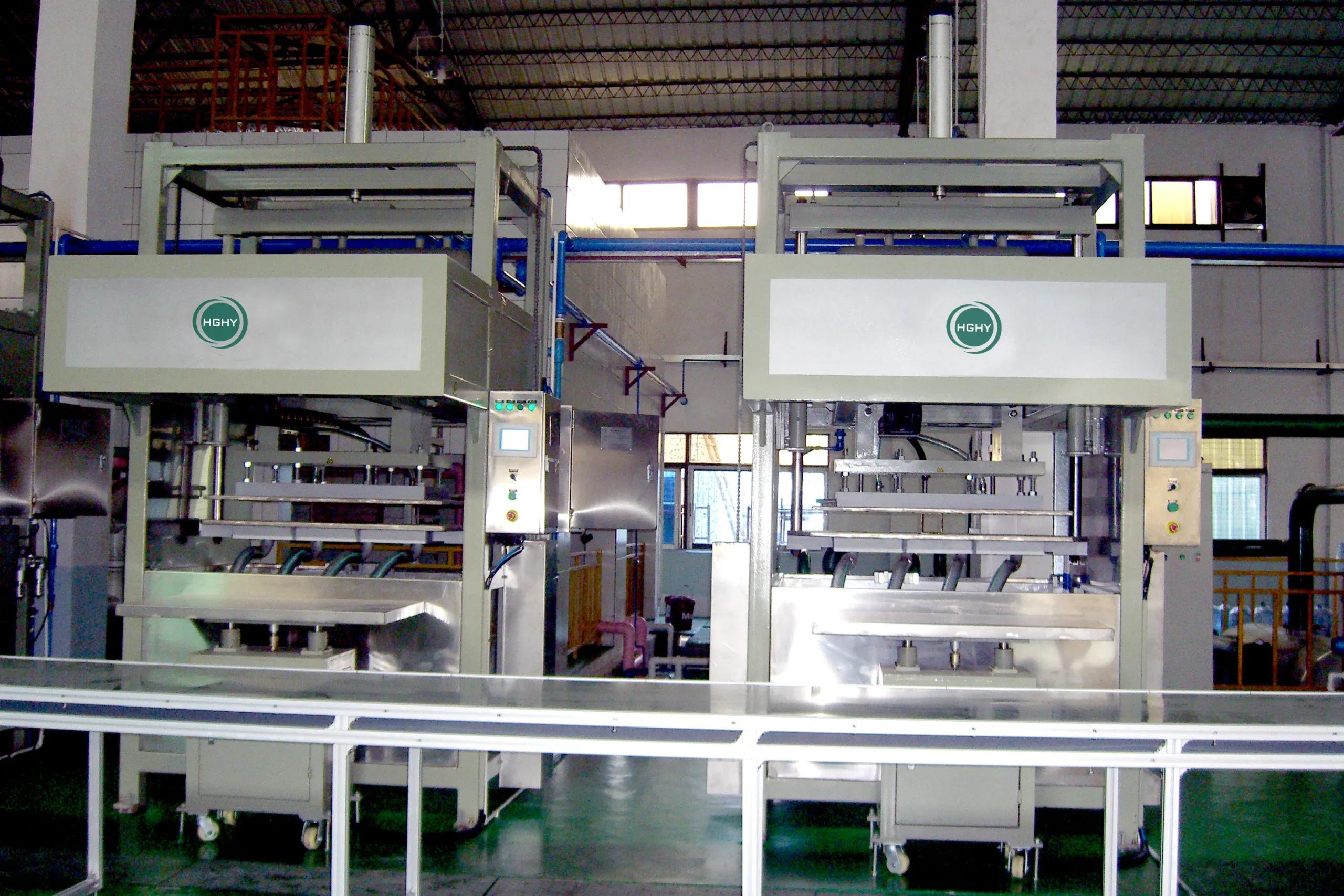

Forming System
The slurry is used to form products through vacuum suction within the forming mold. Once molded, the pulp items are transferred using a transfer mold and then moved to the drying line for further processing.
Our Clients
HGHY is committed to helping customers tackle waste paper recycling challenges by providing practical and effective solutions. Our goal is to generate significant profits through environmentally conscious and sustainable projects.

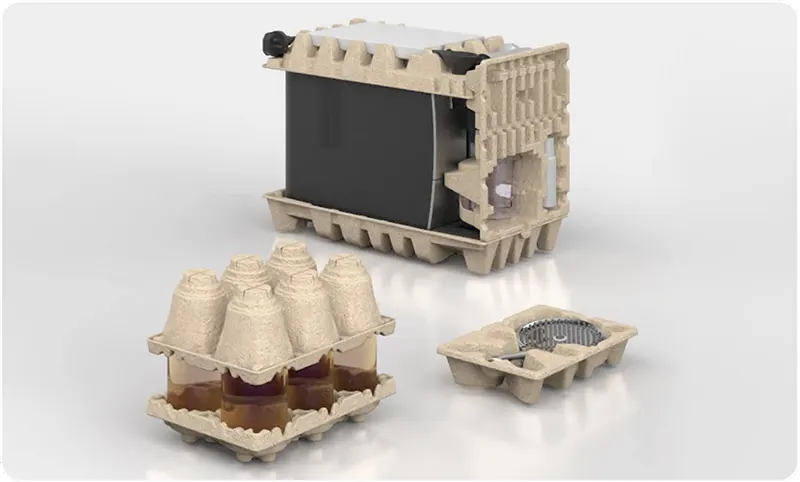

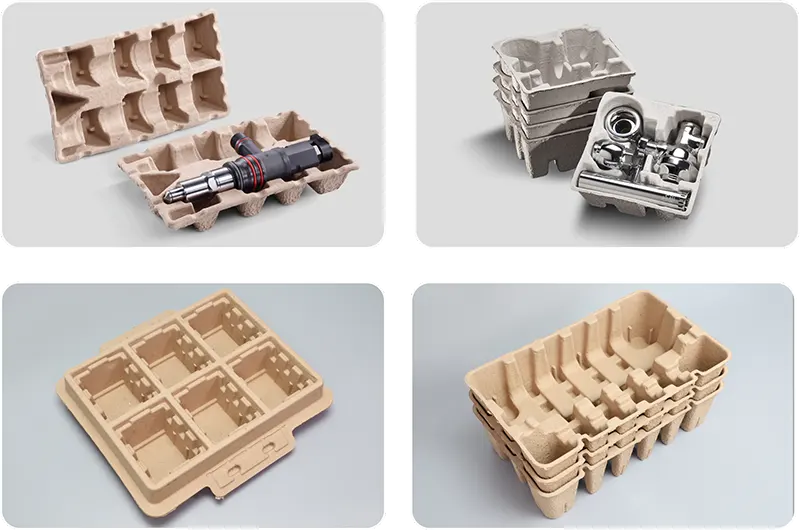

Molded Applications
The Egg Flats Machine is highly versatile, capable of producing various types of trays, including 30-egg, 24-egg, and 20-egg trays. Additionally, it supports interchangeable molds, allowing for the creation of trays in different shapes and sizes to meet diverse needs beyond egg storage. These molds enable the production of apple trays, cup trays, electronic product packaging, bottle trays, shoe trays, and much more.
Frequently Asked Questions
The estimated production time will be around 130 days, from the receipt of order, deposit payment and/or L/C.
Our company will arrange 2 people as guide installers, and the customer will arrange installers. It usually spents 60-90 days that depends on the number of equipment purchased.
The rate of return is high, and it usually pays back in 2-3 years.
HGHY has helped more than 300 clients in over 60 countries setting up their plants with leading capacity and superior quality production.
